Form Measurement

Solutions for accurately assessing complex geometry.

Whether you’re measuring form shape, roundness or surface roughness, there’s a Mitutoyo solution for practically every application.

We offer both compact manual instruments and high-precision motorized models to help you comply with the most stringent standards and strictest tolerances.

BOOK A DEMO

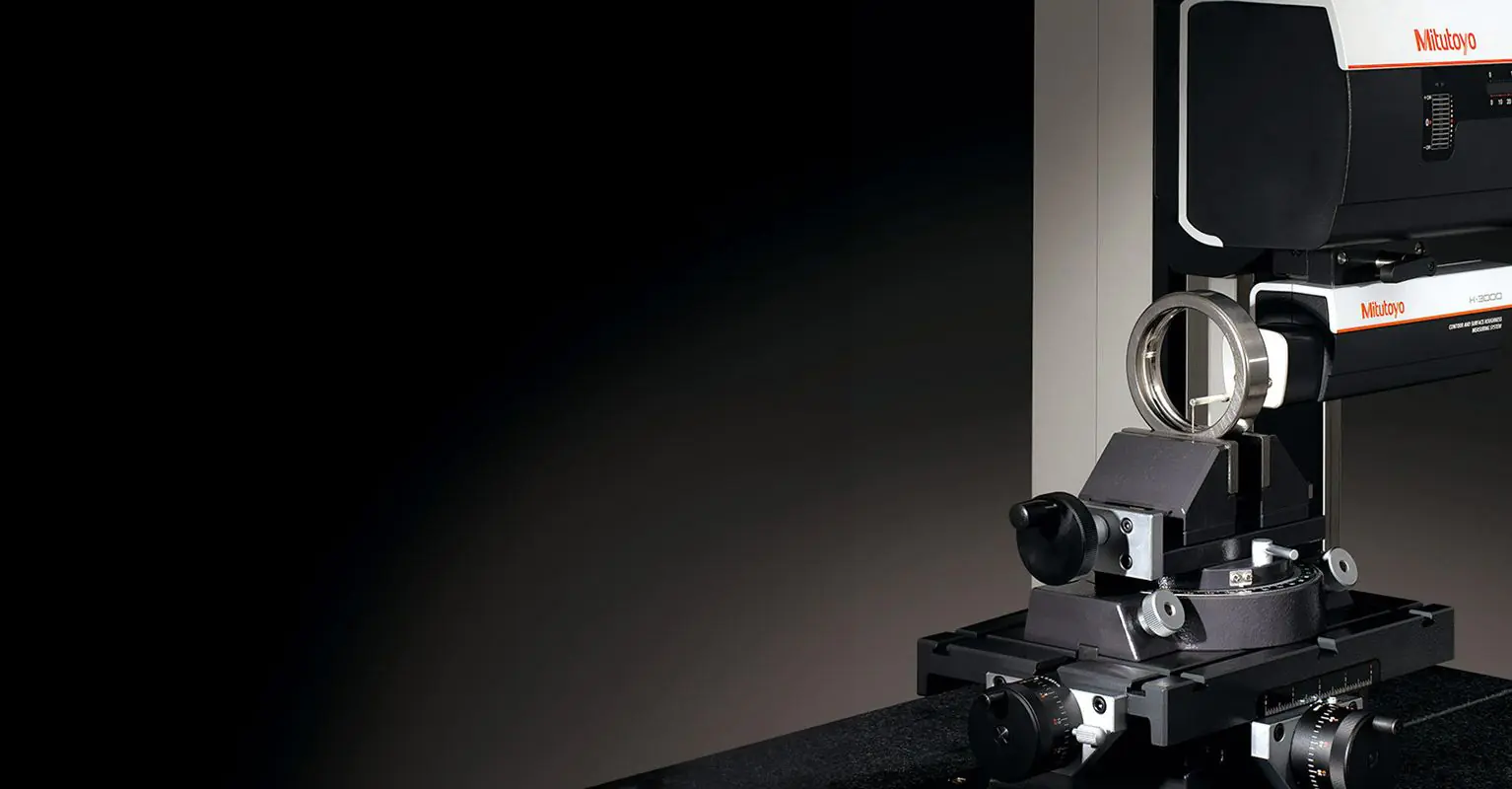

Mitutoyo Form Measurement - Setting the Standard.

Mitutoyo Form Measuring Systems are available for efficiently assessing complex shapes, from radiused to cylindrical, from flat to compound curved, including the vital factor of surface roughness. Every system represents an excellent investment in terms of productivity, versatility, quality of construction, training and service support.

Each system component is designed using the latest CAD techniques to ensure maximum performance and manufactured from materials best suited to the purpose for guaranteed longevity, drawing on the unparalleled technological expertise of a world leader in metrology.

USED IN: Automotive / Medical / Aerospace / Electronics / Injection Molding / Machine Tooling

The Complete Range

Discover the full range of Mitutoyo Form Measurement equipment and accessories covering practically all precision measuring applications.

PRODUCT BROCHURES

Solutions for
every need.

Mitutoyo produces compact handheld instruments, tabletop models, high-precision floor models and custom solutions to suit form measurement applications of almost any size.

Automated Measurement.

Many of our form measuring instruments include advanced CNC control functions, which allow for high volume, faster throughput and increased efficiency.

Cross-functional
Instruments.

By combining multiple form measuring capabilities into a single system, we can help you achieve precision as well as cost and space-savings.

Greater stability
and Accuracy.

We offer advanced models designed using the finite element method (FEM), which allows for straighter guide elements and greater vibration reduction.

Comprehensive Training

Mitutoyo offers a wide range of training courses, all delivered by highly skilled engineers. Every course is based on many years’ experience in offering help, advice and education to the manufacturing industry in the field of dimensional metrology.

Every training course is designed to equip trainees not only with theoretical knowledge but extensive 'hands on' practical experience gained from the availability of the most modern and comprehensive range of equipment to be seen in any educational establishment.

Learn more

Get in touch,
talk to a specialist.

Leave your details and we'll be in touch to discuss your requirements and arrange a product demonstration.
