Crysta-KM 565

CRYSTA-KM 565

Hands-on Manual CMM Measurements

Smart Start in CMM Measurement

Experience precise, intuitive measurement designed for everyday inspection tasks. The CRYSTA-KM 565 brings dependable accuracy and smooth manual control together in a compact system, making high-quality dimensional verification simple, efficient, and accessible for modern production environments.

PRODUCT HIGHLIGHTS

500 × 600 × 500 mm Measuring Range

Large measuring volume allows a wide variety of small to medium-sized components to be inspected on a single system, increasing flexibility in incoming inspection and quality control.

0.1 μm Resolution Scales

Ultra-fine scale resolution ensures precise position detection, enabling reliable measurement of tight tolerances and supporting confident quality decisions.

Solid Granite Base for Stability

The heavy granite base provides excellent thermal stability and vibration damping, helping maintain consistent measurement accuracy even in demanding shop-floor environments.

Rigid Air Bearing System

High-precision air bearings enable smooth, frictionless axis movement, allowing operators to position the probe effortlessly while maintaining excellent repeatability.

Max Workpiece Capacity up to 300 kg

High load capacity allows even heavy components to be measured safely and reliably, expanding the range of applications without compromising stability.

CRYSTA-KM 565 in Action

Discover how effortless manual measurement can be with the CRYSTA-KM 565 in action. In this webinar, we showcase how it works seamlessly with Mitutoyo software to simplify your inspection workflow - watch anywhere, anytime, and see precision made easy.

Watch the Free Webinar

Seamless Software Integration For The Manual CMM

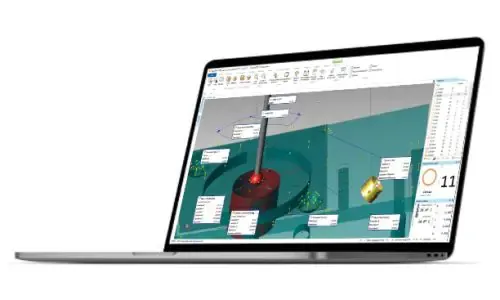

The CRYSTA-KM 565 integrates seamlessly with Mitutoyo’s MCOSMOS and MeasurLink software, turning manual measurements into a smart, connected workflow. MCOSMOS provides intuitive programming, guided operation, clear visualisation, and structured reporting, ensuring consistent and reproducible results across users and shifts. With centralised program management, revision control, and CAD integration, it keeps measurement processes organised and traceable. Combined with MeasurLink for real-time analysis and quality monitoring, it enables faster decisions, full documentation, and efficient, data-driven inspection.

Use cases

EDUCATION

The CRYSTA-KM 565 is an ideal coordinate measuring machine (CMM) for educational environments. Designed as a manual, easy-to-operate system, it allows students to learn the fundamentals of dimensional metrology in a clear and hands-on way. Thanks to its intuitive manual control, learners can directly experience how measurements are taken, how probe movements affect results, and how geometric features are evaluated. This makes it perfect for introducing key metrology concepts such as coordinate systems, tolerances, and inspection workflows. Our new manual CMM is also durable and reliable, making it well suited for training labs, technical schools, and universities where equipment must withstand frequent use by many students. Its robust design ensures consistent accuracy while minimizing maintenance and downtime. By combining simplicity, durability, and professional measurement capability, the CRYSTA-KM 565 provides an excellent entry point for students beginning their journey in precision measurement and quality assurance.

Easy to Learn

Intuitive manual operation for fast skill development.

Reliable Results

Consistent accuracy for confident learning.

Built for Long-Term Use

Durable, low-maintenance for daily training environments.

WorldSkills Partner

From a trusted WorldSkills industry partner.

INCOMING GOODS

The CRYSTA-KM 565 manual coordinate measuring machine (CMM) is a flexible and reliable solution for incoming goods inspection. Its manual operation allows quality technicians to quickly inspect a wide range of parts without the need for complex automation or lengthy program preparation. This flexibility makes it ideal for environments where part types change frequently, such as supplier inspections or first-article verification. Operators can easily measure critical dimensions, check tolerances, and validate component quality directly upon arrival. The CRYSTA-KM 565 also integrates seamlessly with Mitutoyo’s MCOSMOS software, enabling efficient measurement evaluation, reporting, and documentation. Connectivity with our MeasurLink software enables inspection results to be captured and analysed within a statistical process control (SPC) environment, supporting traceability and data-driven quality management. With its combination of manual flexibility, reliable accuracy, and strong software connectivity, the CRYSTA-KM 565 is an effective tool for maintaining consistent quality during incoming goods inspection.

Confident Quality Checks

Intuitive manual operation for fast skill development.

Faster Manual Measurement

Smooth movement reduces effort and saves time.

Seamless Reporting

Direct integration with Mitutoyo software for quick documentation.

Flexible Part Inspection

One system for a wide range of incoming components.

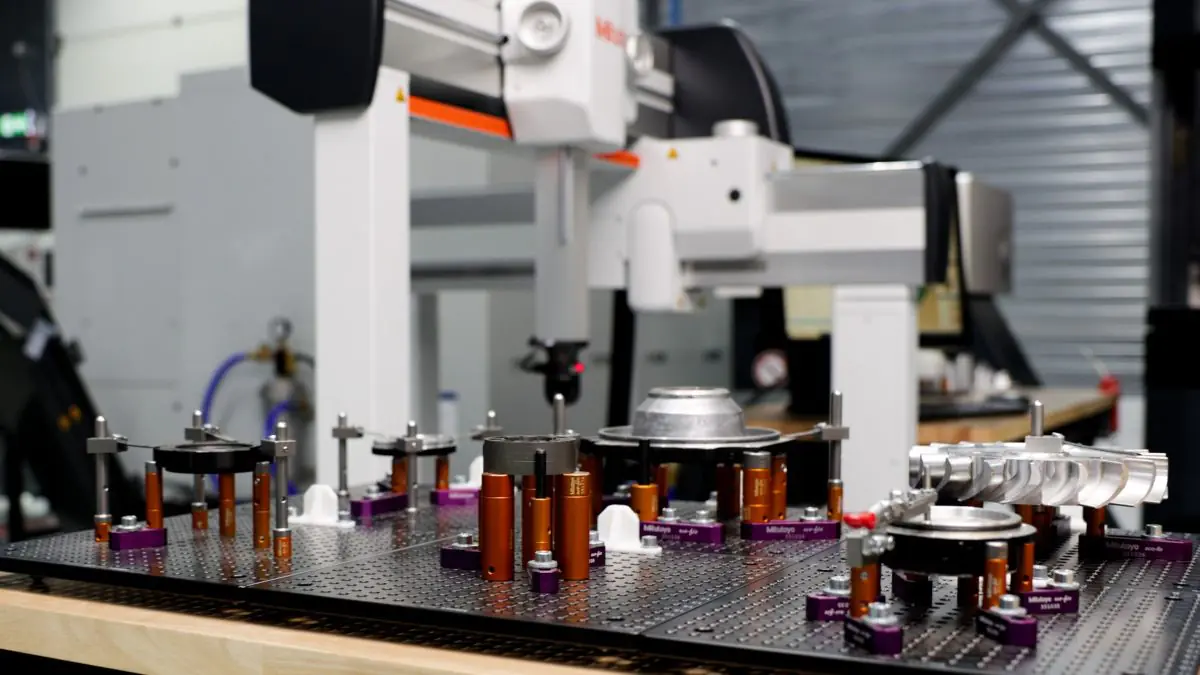

Crysta KM 565 - Promo Video.00_00_26_05.Still010.jpg

Complete Your Measurement Setup

Mitutoyo supports your measurement process from start to finish. In addition to our Manual CMM systems, we offer styli, fixture solutions, mounting concepts, and much more designed to securely position parts for accurate and repeatable measurement. Together, these solutions create a complete ecosystem for efficient and reliable geometrical inspection, helping you achieve consistent results while optimising your measurement workflow.

DISCOVER STYLI DISCOVER FIXTURES

E-LEARNING Crysta-KM 565 Thumbnail 1.png

E-Learning: Learn Anytime, Anywhere

Build your confidence with the CRYSTA-KM 565 at your own pace. Our dedicated E-learning module lets you learn anywhere, anytime, with step-by-step guidance designed for beginners and experienced users alike.

What you’ll learn:

Basic CMM operation and setup
Manual measurement techniques
Working with Mitutoyo software
Best practices for accurate results
Creating and understanding reports

Discover our E-Learning Modules

DOWNLOAD LEAFLET

Learn more about our manual CMM and its capabilities in our free leaflet!

PRE 1621 - CRYSTA-KM565 (PDF, 0.68 MB)

Get the Offer and Full Details

CONTACT US

Fill out the form to request informations, connect with a sales expert or sign up to our newsletter!

Personal Information

Salutation

First name*

Last name*

E-mail*

Company*

Postcode*

City*

Street*

Country*

Phone

Subject

How can we help?*

Which Product you are interested in?*

Comments*

More information

Please keep me up-to-date about products, promotions and events on a regular basis

What industry are you in?*

How did you get to know us?*

I accept the General Terms and Conditions of Use for Internet Sites and Their Contents of Mitutoyo Europe GmbH

* mandatory

FAQ

What is the CRYSTA‑KM 565?

A manual coordinate measuring machine with an aluminium half‑gantry structure on a granite base, designed for precise manual inspection.

What is the measuring capability?

Measuring range: X 500 mm / Y 600 mm / Z 500 mm.  Accuracy (ISO 10360‑2:2009): E0,MPE = 3.2 + 5L/1000 µm.

How is it operated?

The machine is fully manual, operated via handwheels, with optional micrometric fine‑adjustment wheels and pneumatic axis clamping.

Software Integration – MCOSMOS & MeasurLink

What is MCOSMOS?
Which modules are included?
What is MeasurLink?

What is MCOSMOS?

A modular CMM software suite used to organise, execute, evaluate and report measurements (PDF, XLS, HTML).

Which modules are included?

Part Manager, GEOPAK (3D measurement), Start Wizard, and Quick Launcher for easy program execution.

What is MeasurLink?

A real‑time SPC platform for centralised data collection, process monitoring, and advanced reporting across many device types.

Education & Training

Why is the KM565 ideal for education?
What makes training easy?
How does the software support learning?

Why is the KM565 ideal for education?

Its manual operation teaches fundamental metrology skills without requiring automation expertise.

What makes training easy?

Free access to the measuring volume, intuitive controls, and a straightforward machine setup.

How does the software support learning?

With guided workflows (Start Wizard), simple navigation, structured program management, and icon‑based operation via Quick Launcher.
