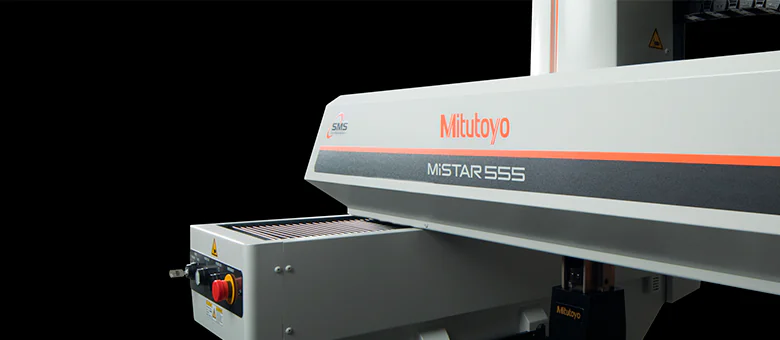

MiSTAR 555

Shop Floor Type CNC CMM

MiSTAR 555

Versatility. Simple Operation. Compact Design.

Mitutoyo. Smart Solutions for Smart Factories

With best-in-class drive speed & acceleration and the widest temperature accuracy guarantee for a Shop Floor CMM, this small powerhouse has it all, exceptional contamination resistance. With the MiSTAR 555 CNC CMM, shop floor precision measurement will never be the same again.

Designed for use on shop floors of any size, the MiSTAR 555 CMM delivers the toughest shop floor operating condition capabilities with best-in-class drive speed and acceleration. MiSTAR combines in-line and near-line precision measurements with easy usability, unprecedented versatility, and a space-saving design to measure almost anywhere, for anyone, at any time.

Begin Your Shop Floor Measurement With the MiSTAR 555

Precision, reliability, and high performance of our centralized solutions deliver the visibility you need for ideal quality control. With hardware, software, integration, and service all available from a single provider, we put a data-driven facility within your reach — no matter the size of your business.

Shop Floor Integration

With a complete range of in-line and near-line CMMs, Mitutoyo delivers exceptional durability, speed, and accuracy for factory-floor applications of nearly any size or shape. The new Smart Measuring System developed by Mitutoyo allows smart factory functionality for everyone, enabling real-time monitoring of machine performance data as well as measurement data.

Smart Measuring System

The Mitutoyo-developed smart factory features boost your quality assurance output with the following.

Status Monitor: remote monitoring of the operational status
Condition Monitor: monitors current operational condition (Option)
MeasurLink Software: Reduces the production of defective parts (Option)

Request your demo now

Mitutoyo MiSTAR 555 Features and Specifications

Features

A guaranteed temperature accuracy range of 10 to 40ºC by combining technologies such as symmetric structure, uniform material, and temperature compensation
A single support moving bridge and a storage cabinet for machine controllers under the measuring table saving installation space, reduces the footprint to about 70% when compared with that of the conventional moving bridge model
Attains a contamination resistance over two times greater than Mitutoyo's conventional machine by adopting a newly developed absolute scale* that is highly resistant to the challenging production-line environment.
Three-sided open architecture making moving workpieces on and off the measuring table significantly easier and more user-friendly, reducing the operator’s workload

* Scale that provides an absolute value for each measurement point. This eliminates the need for a machine initialization operation

Specifications

Measuring range	X	570 mm
	Y	500 mm
	Z	500 mm
Max. permissible length measurement error (ISO 10360-2: 2009)	18~22°C	(2.2 + 3.0L/1000) μm
	10~30°C	(2.9 + 4.5L/1000) μm
	10~40°C	(3.8 + 8.0L/1000) μm
Drive speed (3D)		606mm/s in CNC MODE
Drive acceleration (3D)		2695 mm/s2
Measuring table capacity	Maximum workpiece height	660 mm
	Maximum loading	120 kg
	Mass (includes machine controller)	655kg
